- PCB included: Yes
- Battery Included: No
- High-concerned chemical: None

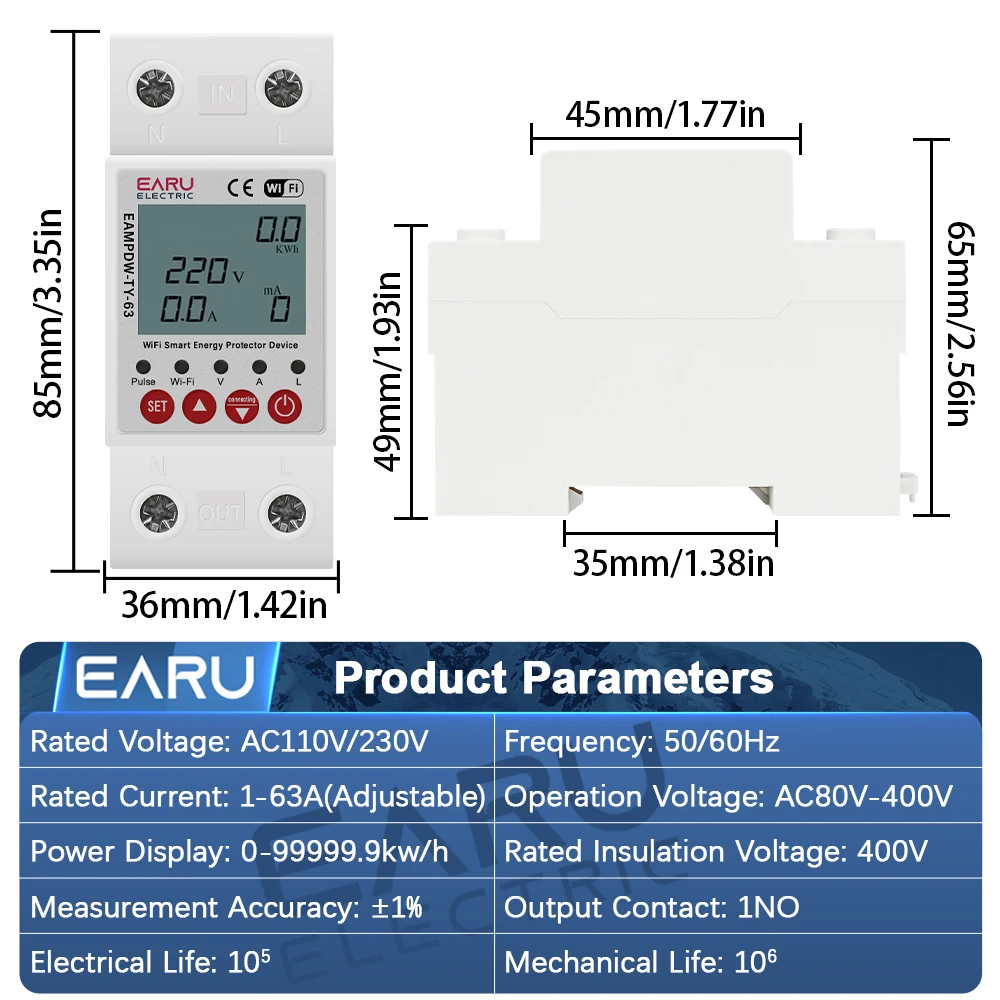

- Dimensions: 85mm*36mm*65mm
- Operating Temperature: -30℃-70℃
- Output Voltage: 220V
- Accuracy Class: 1
- Measuring Energy Range: 0-99999.9kw/h
- Phase: Single-phase
- Model Number: EAMPDW-TY-63
- Max Operating Current: 19A & Under
- Rated Voltage: 230V
- Power Supply: AC
- Display Type: Digital Only
- DIY Supplies: Electrical
- Brand Name: EARU
- Origin: Mainland China

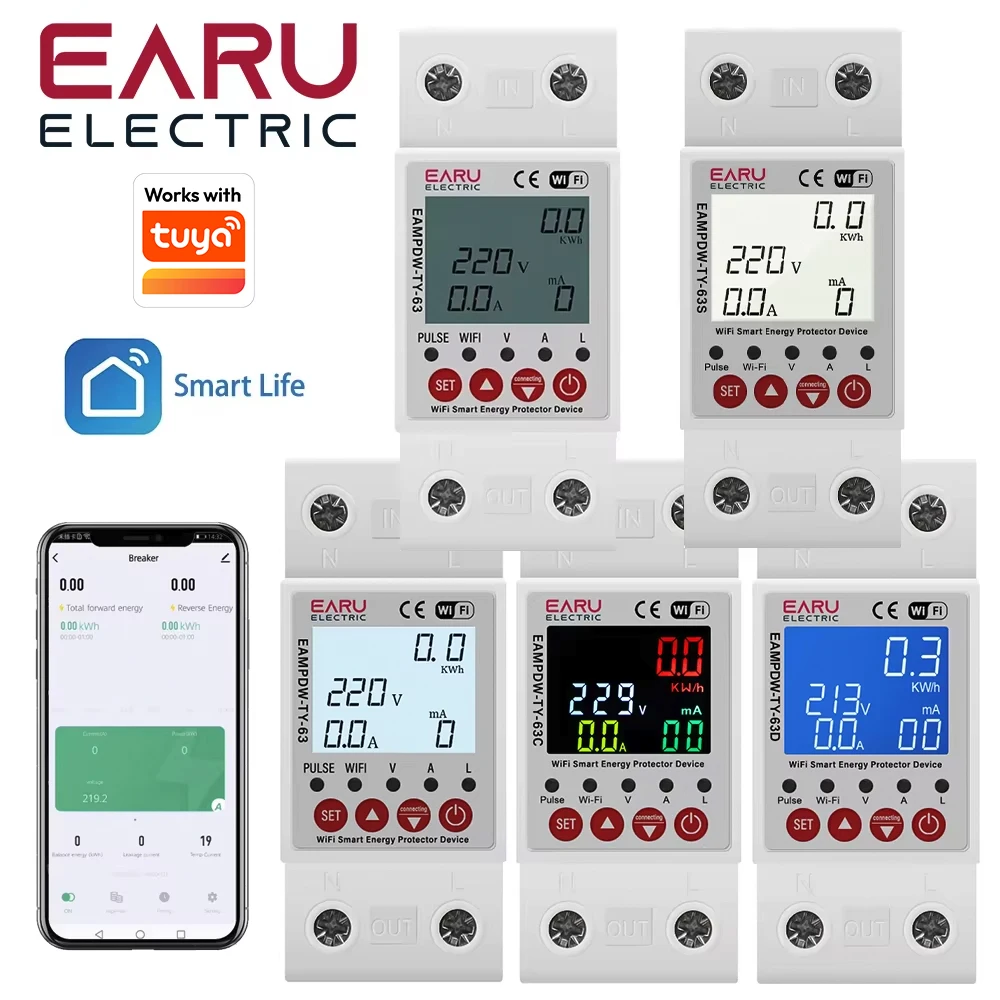

- Product Name 1: EAMPDW-TY-63-B
- Product Name 2: EAMPDW-TY-63-C
- Product Name 3: EAMPDW-TY-63-S
- Rated Current: 1-63A(Adjustable)
- Rated Frequency: 50/60Hz
- Rated Voltage: AC110/230V
- Installation: 35MM Din Rail
- Protection Degree: IP20
- Output Contact: 1NO
- Measurement Accuracy: ±1%
- Model 1: RCCB
- Model 2: RCBO
- Model 3: RCD
- Product Name 4: EAMPDW-TY-63-D
- Function1: Undervoltage Protection
- Function2: Overvoltage Protection
- Function3: Overcurrent protection
- Function4: Undercurrent protection
- Function5: Temperature Protection
We are factory, we can provide OEM service, if you need product with your logo, please contact us!

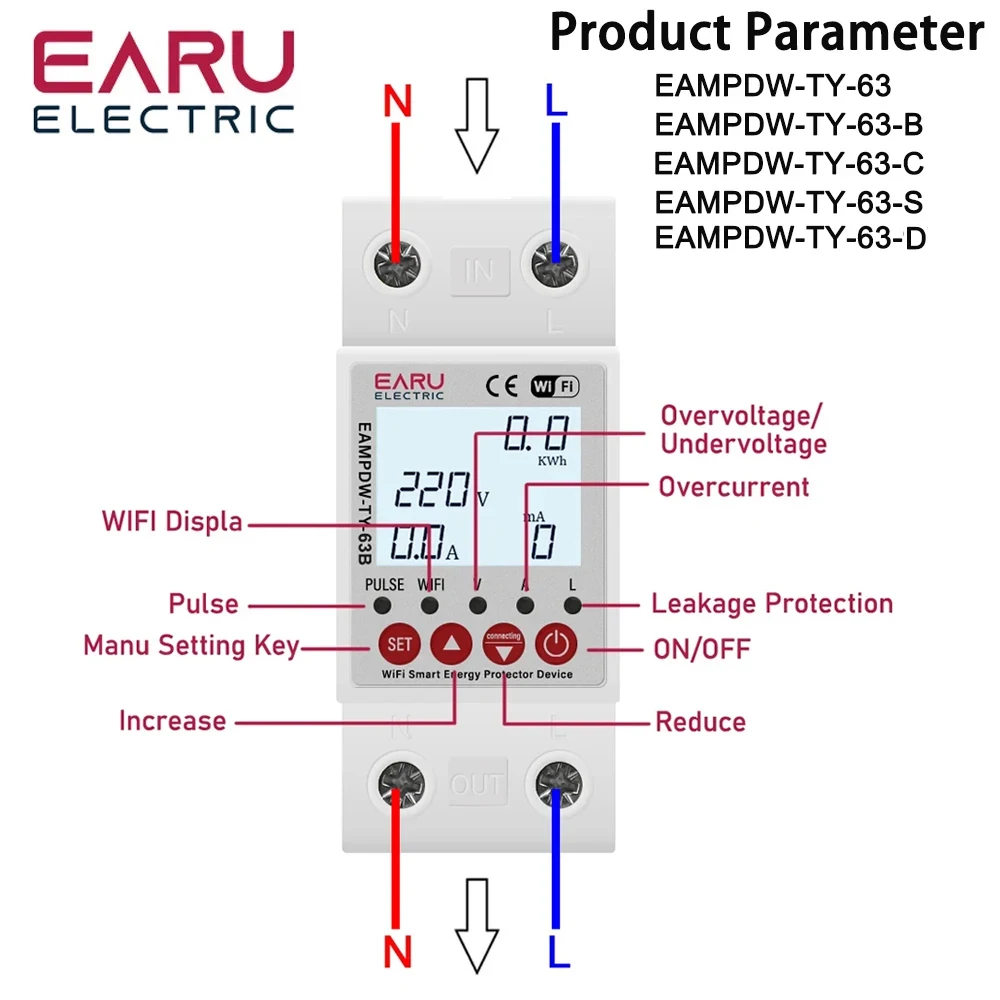

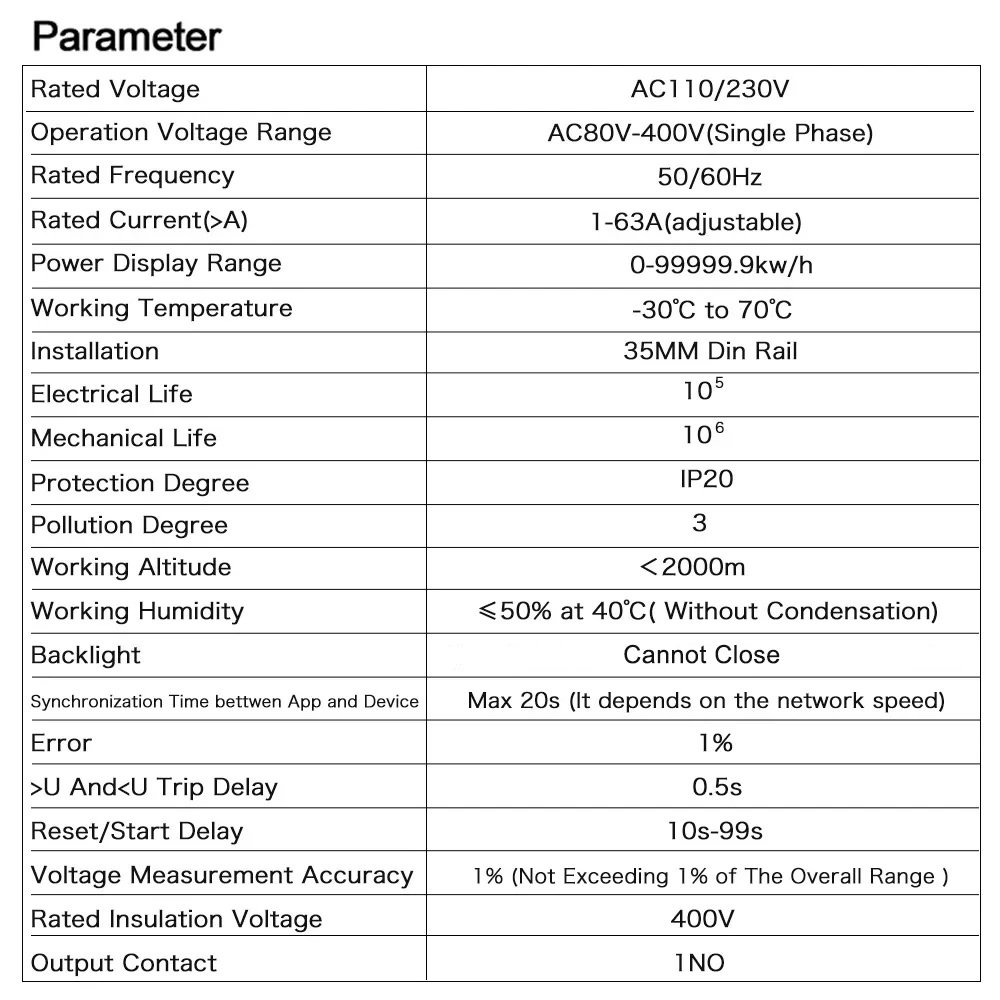

Product Specification
Rated Voltage: AC110V/230V; Frequency: 50Hz/60Hz

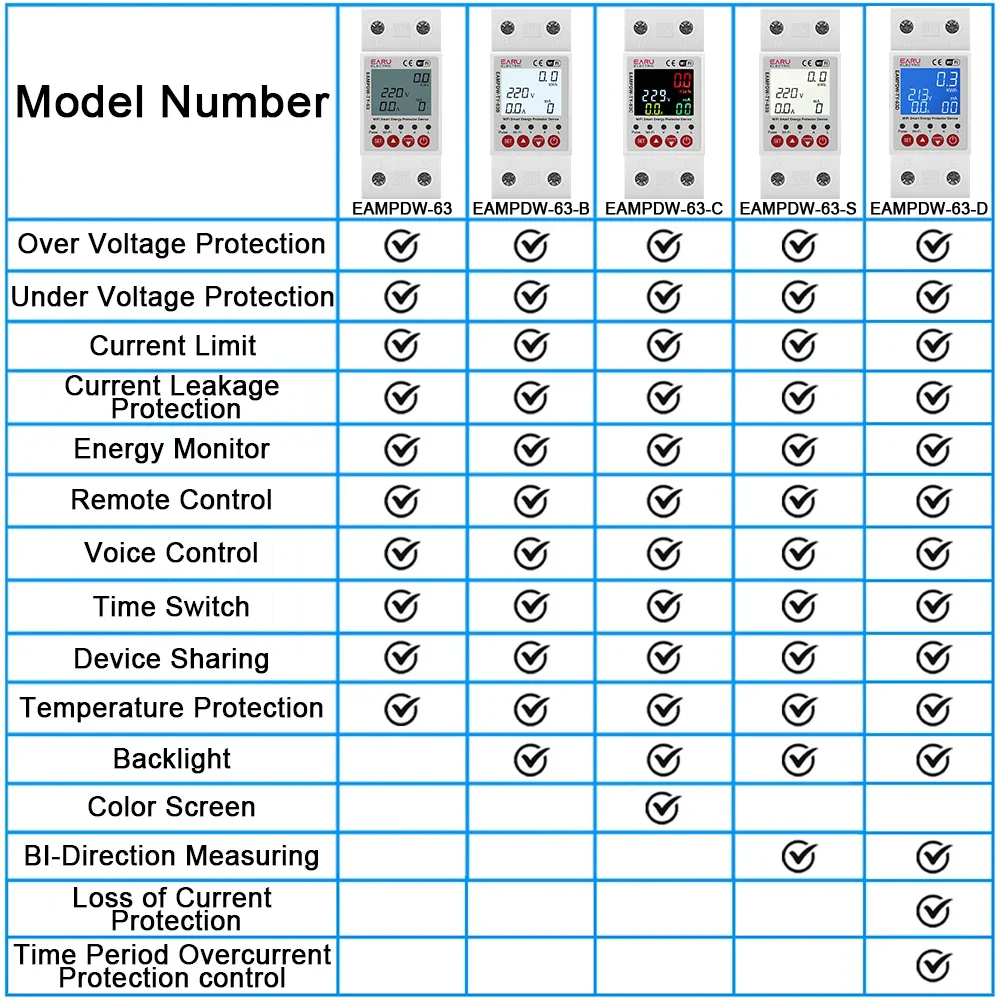

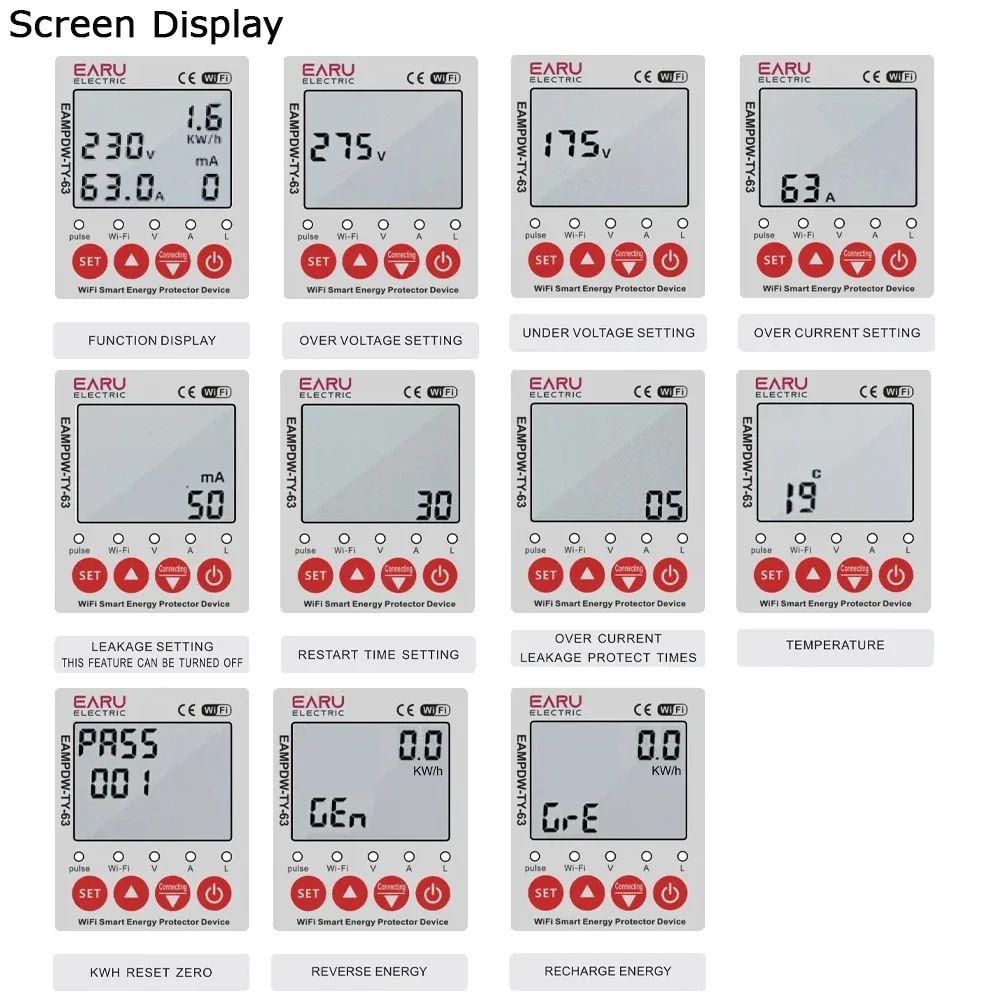

Function:
1. Voltage Meter
2. Ammeter
3. Energy Meter
4. Timer Switch

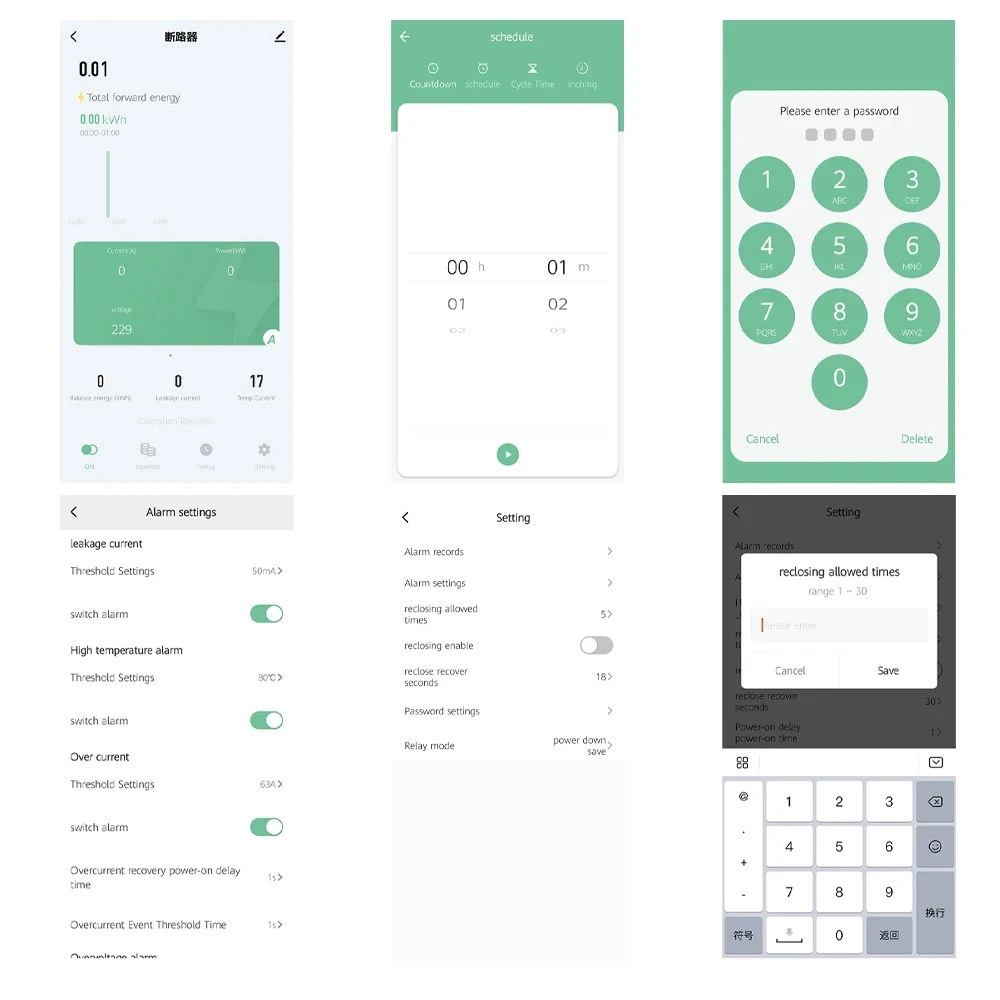

5. Remote Control ON/OFF
6. Power Failure Memory
7. Bidirectional Detection (EAMPDW-TY-63S/EAMPDW-TY-63D Only)
8. Time Period Overcurrent Protection Control (1A-100A Aadjustable) (EAMPDW-TY-63D Only)

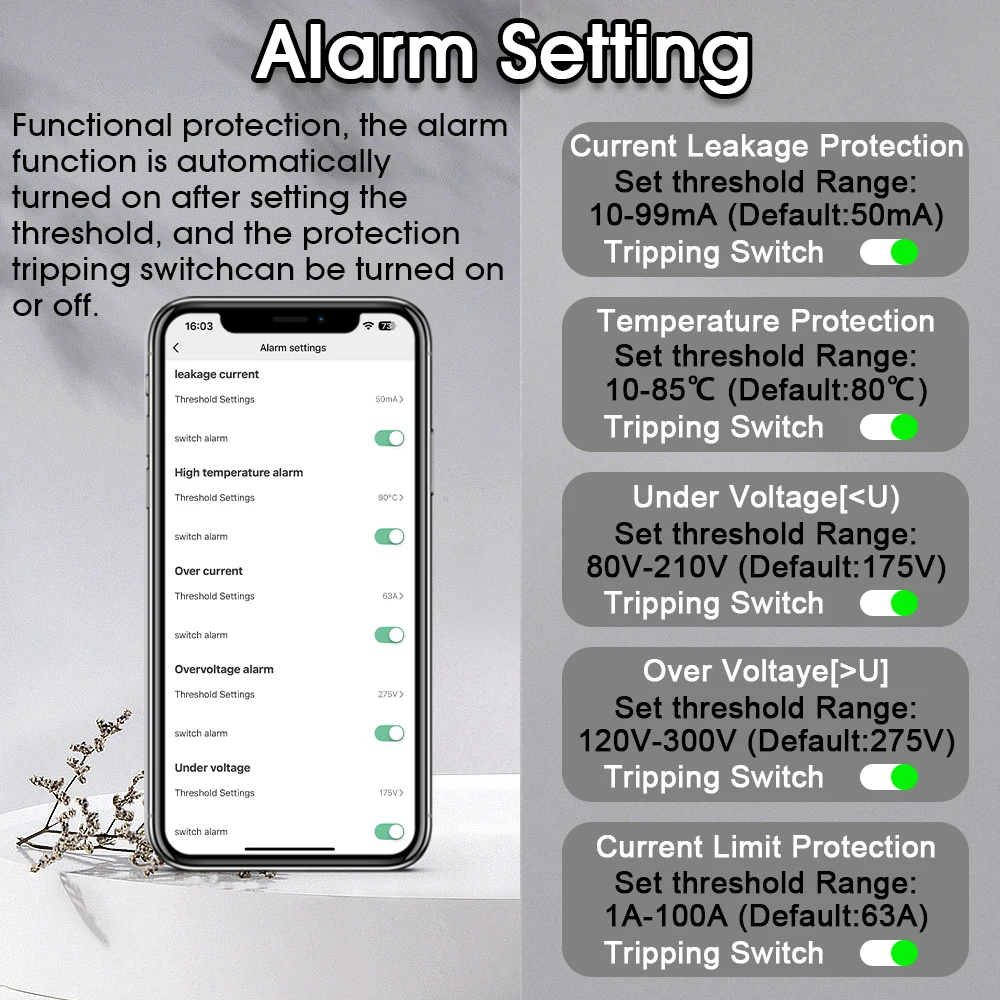

9. Over Current Protection (1A-63A Adjustable)
10. Under-Voltage Protection (76V-240V Adjustable)
11. Over-Voltage Proteciton (120V-300V Adjustable)
12. Current Leakage Protection (10mA-99mA Adjustable)
13. Temperature Protection (10°C-85°C Adjustable)
14. Over Current and Leakage Reconnect Times (1-30 Adjustable)
15. Reconnect Time (Delay on time) (10s-90s Adjustable)
