Packing list：

1X Led strip(no power or led controller)

Note:

1.The price is only Led Strip, Not Included Power Supply or Led Controller!

2.WS2813 Must Use DC5V Power Supply and Led Controller to Control!

3.WS2815 Must Use DC12V Power Supply and Led Controller to Control!

4.Every 0.5meter with solder joints, please note!

5.Main feature:

One pixel damaged will not affect the other LEDs'working, Dual signal wires version, Signal can jump to transfer

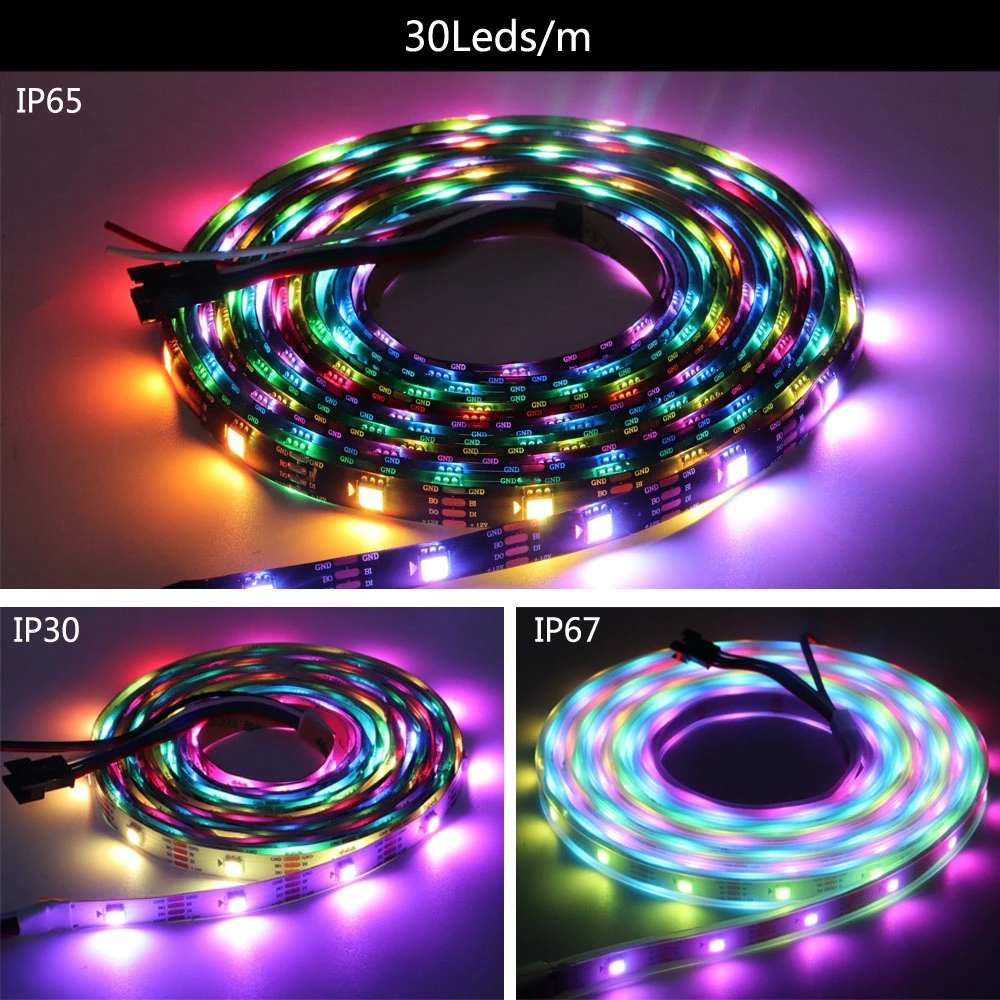

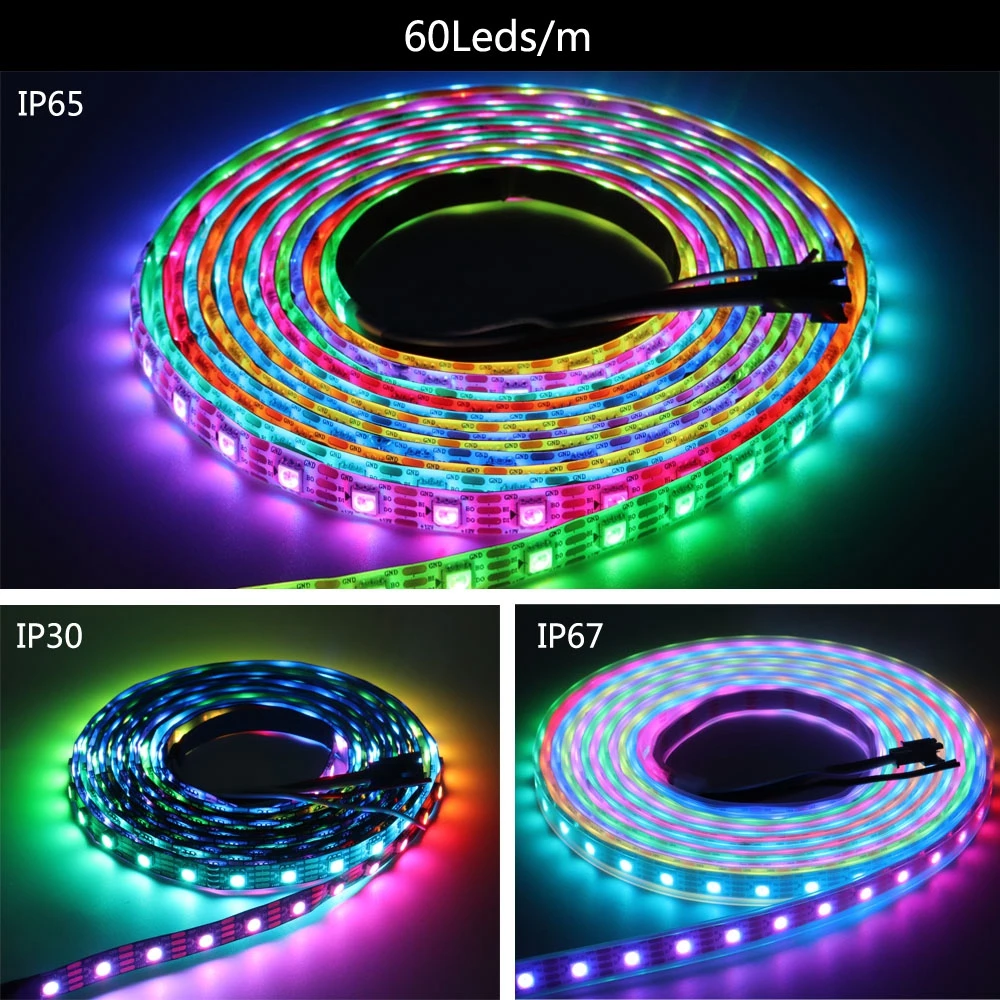

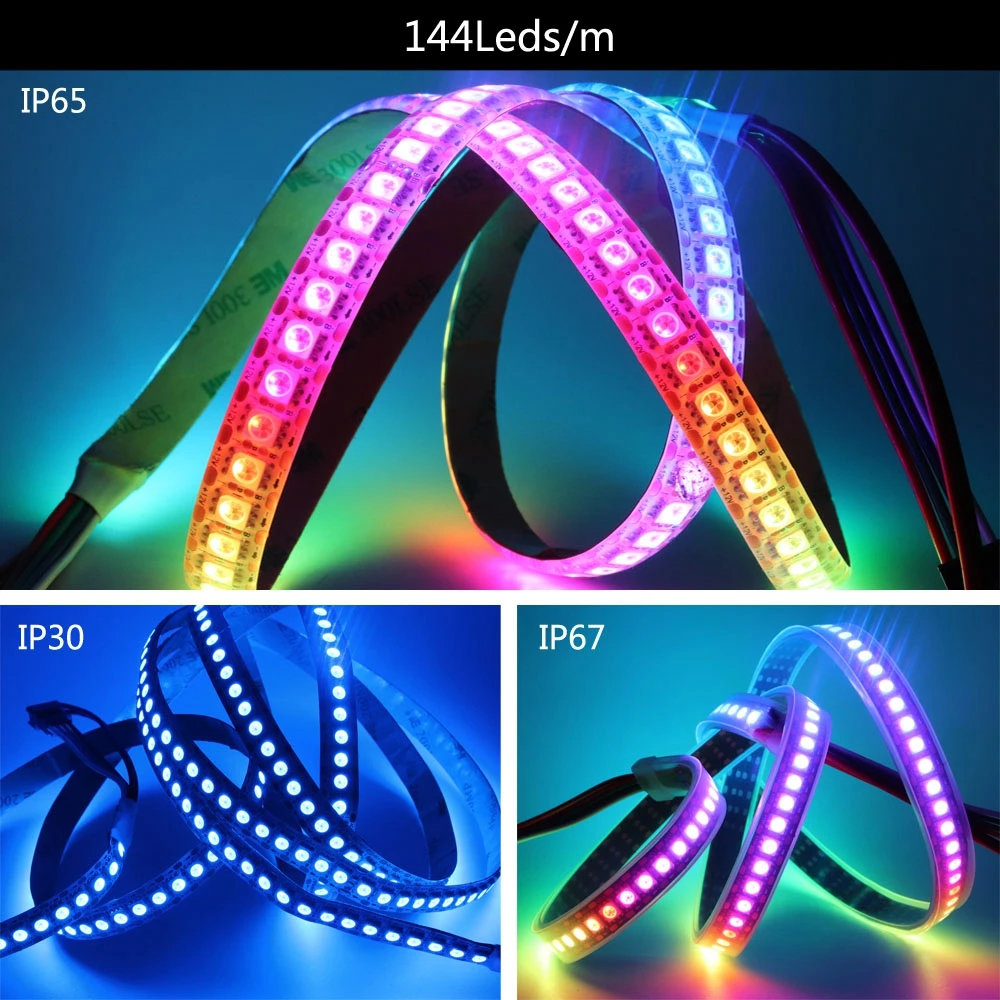

Protection Rate:

IP30 Non-Waterproof

IP65 Waterproof in Silicon Coating

IP67 Waterproof in Silicon Tube

IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive)

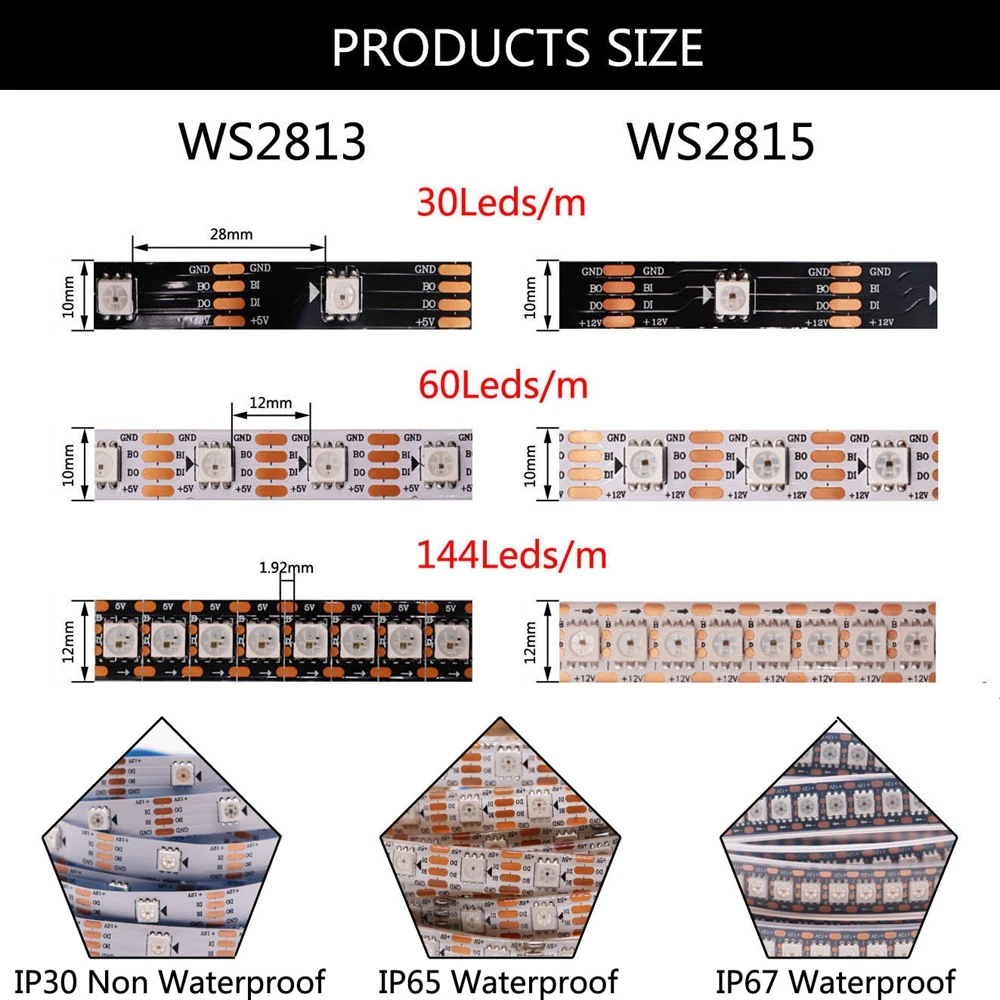

FPC Width:

30 Leds/m — 10mm

60 Leds/m — 10 mm

144 Leds/m — 12 mm

Power:

30 Leds/m — 9w/m

60 Leds/m — 18w/m

144 Leds/m — 43.2w/m

The different between the WS2815 and WS2813:

1. LED Chip type:

WS2815——WS2815 IC

WS2813——WS2813 IC

2. The problem with voltage drop:

WS2815 No voltage drop

WS2813 need to add DC5V voltage every 5m

3. Normal operating voltage:

WS2813 Working with DC5V

WS2815 Working with DC12V

Feature:

LED Light Source: WS2813 LED/WS2815LED

( Same Protocol as WS2811S But With Dual-Signal Wires,So Can Be Controlled by the Same WS2811/ws2812 Controllers)

Input Voltage: DC5V WS2813 / DC12V WS2815.

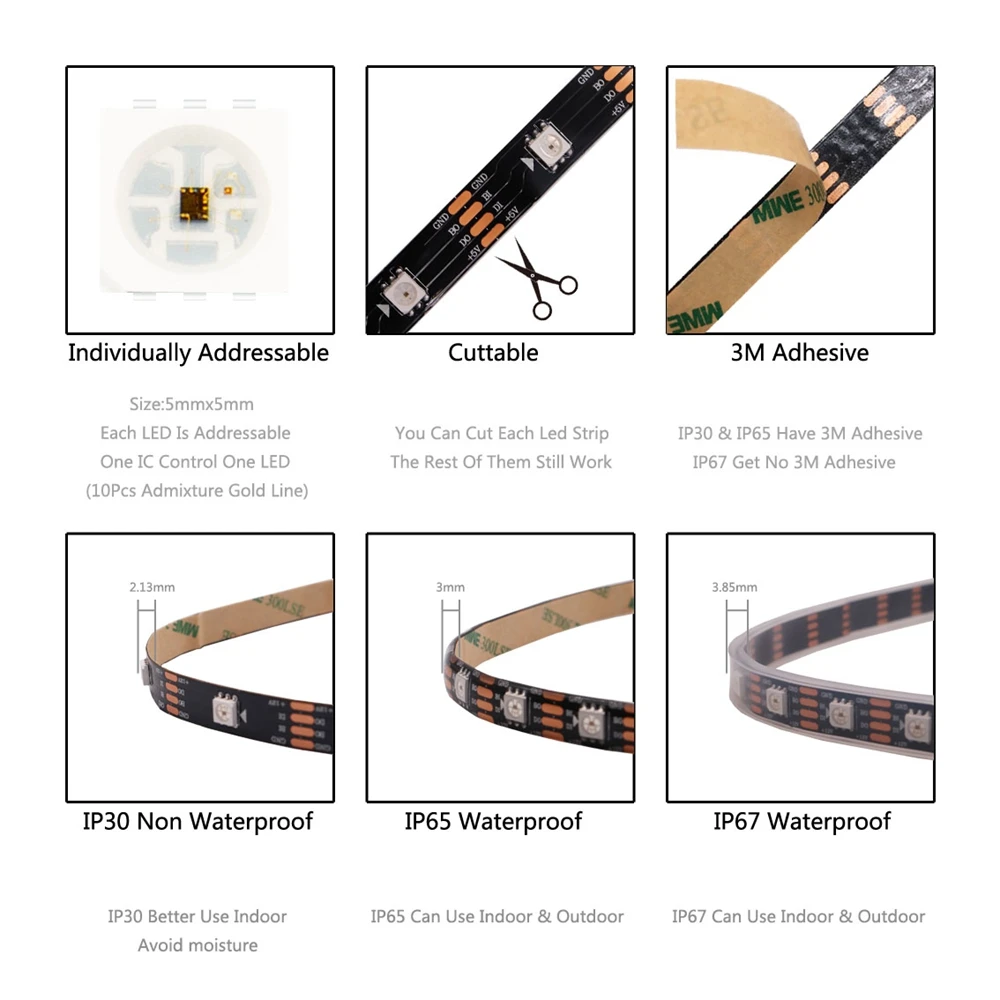

LED: Each LED is separately controlled

IC: (1 IC drives 1 led chip)

Cuttable: Every LED is cuttable

Grey Scale: 256

Bits/Color: 8-Bits/Color

Colors: Full color RGB, dream color changing

FPC Color: Black/ White

Pixels: 30Leds/60Leds/144Leds/m

Working Temperature: -40 – 70 °C

Storage Temperature: -50 – 80 °C

Source Life: 50,000 hours

Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)
